EZI-TRIAL EZIscreen Trial Pack for Speedball and traditional emulsionsEZIscreen Trial Pack

Product Code: EZI-TRIAL

Are you using Speedball, diazo or coating screens with emulsions right now - before you even begin to expose your designs?

Our EZIscreen Trial Pack is a low cost option for you to see how fast and easy StencilPro™ Film is to use whilst continuing to use your own squeegee and inks.

Make two screens and see for yourself how much faster and easier it is to make a screen using StencilPro™.

What have you got to lose? Not much, as you'll still end up with 2 reusable screens you can keep and print again, even if you don't want to swap over to a faster and easier way of screen making with EZIscreen.

Specifications

Click icon below for details . .

2 sheet StencilPro pack - number of available screens Expose in Sunlight Expose indoors under Fluro UV light A5 Size when extra equipment added A4 Print Size - 170x240mm A3 Size when extra equipment added StencilPro Sheet size Supplied with equipment for single colour Multi-colour available with extra equipment Suitable for printing White and light coloured fabrics uysing Standard Fabric Inks Supplied ready to print flat/ direct sytle printing Suitable for use with Aquatex fabric inks Suitable for use with acrylic inks Suitable for use with oil based inks Suitable for use with aqua inks for plastic/ metals inks Suitable for use with low solvent base inks Suitable for use with ceramic and onglaze, underglaze and glass inks inks Inks and equipment supplied suitable for use with Cotton fabrics Inks and equipment supplied suitable for use with Polyester fabrics Inks and equipment supplied suitable for use with Polyester fabrics Inks and equipment supplied suitable for use with paper and wood Inks and equipment supplied suitable for use with Neoprene Additional equipment required to print Plastics and Metals (suitable ink must be adeed) Additional equipment required to print Plastics and Metals (suitable ink must be added) Additional equipment required to print Ceramics (underglaze/ onglaze) and DecalsPlastics and Metals (suitable ink must be added)



Next product: EZIscreen Basic Kit

  • Usage
  • Contents/ Technical
  • Support/ FAQ's

Key Features

Use your existing squegee and inks

No extra exposure equipment - use sunlight or inside under a fluroescent lamp.

No coating emulsions - no mixing sensitizer, emulsions or chemicals then waiting to dry

Develop in water with fast exposure times (under 1 min in sunlight)



Usage

StencilPro™ Usage Guide

Create Artwork

Print your design using ink jet, laser printer, photocopy, hand draw with texta or market pens - anything as long as it's opaque.

Place artwork face down

Artwork goes face down against the shinny side of the film.

Expose in light

A tight bond is required between the artwork and film, use Exposure Frame for best results.
Place in sun, time according to timetable given in StencilPro™ instructions.

Soak and rinse in water

Place imaged screen into water to soak - keep away from bright light during this time. Then brush out emulsion. Re-expose to harden film before use.

Ready to print

Your design is now ready to print. For screen printing mount to a plastic frame, for stenciling/ brushing/ spraying attach using tape.



Cleaning

You should never let ink or paint dry in your screen, as this is very hard to clean without damage.
Avoid ink drying in the screen by either:
a) Cleaning the screen (water or solvent cleaners depending on your ink type) when you pause printing
b) Perform a clearing print (see website) to remove ink from design area between each print

If several StencilPro™ films become stuck together do not pull them apart, soak in water for a few minutes until they come apart naturally.

Storage

Properly stored StencilPro™ has a shelf life of at least 12 month. Always store undeveloped film in the black bag, in the dark and away from heat/fluroescent light/ direct sunlight.
We recommend storing undeveloped film inside the Opaque Storage Container for added protection against light.

Ideal storage/ usage temperature is between 5 to 25° Celsius. For hot/humid areas store inside Opaque Storage Container and place in refrigerator or cool room.

Store developed film flat, do not fold or bend.

Once developed the stencil is no longer sensitive to light and may be stored in clear plastic bags or any suitable storage container.



Cleaning

See StencilPro™ product page - click here . .



Related Products

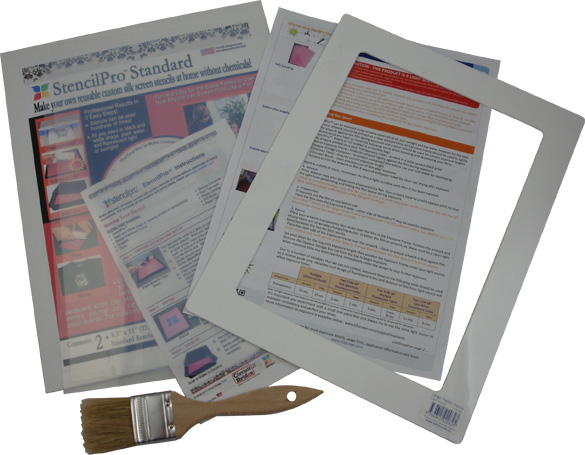

Contents (2015 pack)

StencilPro Exposure itemsStencilPro screeen equipment:

1 x StencilPro Standard 90Mesh Sheet (218x279mm/ 8.5x11")

1 x StencilPro HiRes 200Mesh Sheet (218x279mm/ 8.5x11")

4 x A4 Multi-function Artwork Transparency

1 x EZIscreen Washout Brush Frames



Frame mount:

1 x Small Plastic FrameĀ (120 x 180mm)

1 x Large Plastic FrameĀ (180 x 250mm)



Print blade:

Frames1 x 6"/153mm EZIblade Plastic/Rubber)



Support, training and information:

IS48: EZIscreen Usage Guide

StencilPro™ Usage Guide



Specifications

EZI-TRIAL packSupplied: Pack

Item Weight: 240g

Length: 315mm

Width: 245mm

Height: 15mm



Notice

CAUTION - StencilPro IS A LIGHT SENSITIVE MATERIAL
Open protective black bag under subdued lighting conditions only. Do not expose undeveloped film to U.V. or direct sunlight at any time. Avoid exposure to bright artificial light sources, especially from fluroescent tubes as this will begin to expose the StencilPro film. Protect from excessive heat, freezing and high humidity.
StencilPro film should be stored in an Opaque Storage Container away from heat and light sources.

Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . .
Important: Use the product code listed at the top of this page.

FAQ's

There are no FAQ's for this product.
